Analytical Modules
AU designs and produces both standard & customized modules to perform specific analytical tasks. Contact Us with your requirements.

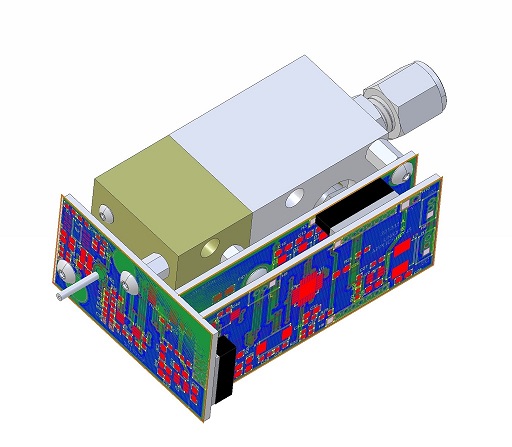

Fireworks II -Smart FID Sensor
- Full Fireworks Smart Sensor functionality
- 24 bit A/D signal conversion with fixed gains (L/M/H)
- I2C or standard UART communications
- Rich command set
- Fuel control safety features
- Supports stand alone operation
- Can report calibrated in addition to raw detector signal
- Data Streaming or Polling mode operations
- Operates at up to 200 Deg C with very low temperature drift
Microscope
Functional code for evaluation and development with AU analytical modules.
All TableTalk implementations run on the Raspberry Pie
- Dashboard for demonstration of Fireworks Modules
- I2C Comms from the Raspberry Pie
- Provides support for OEM development
- Provides full functional support (configuration of HW)
TableTalk is AU’s revolutionary approach to instrument system software
Edit the tables to create all new functionality, new display screens and new modes of operation.
What you can do with TableTalk is truly remarkable.

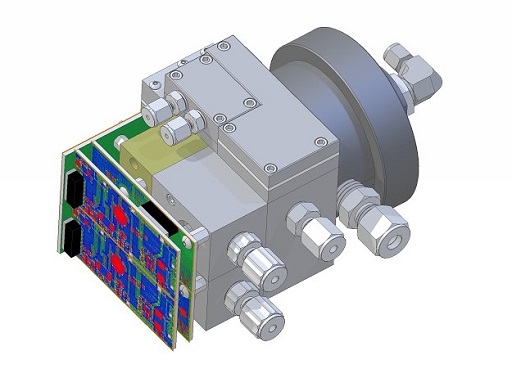

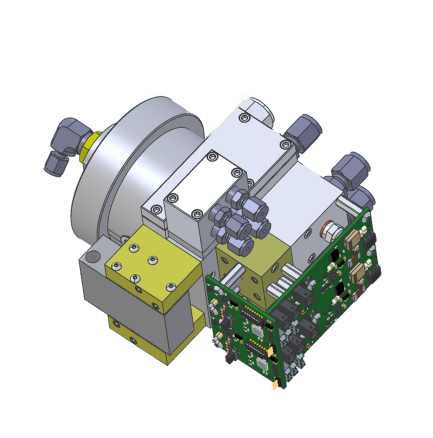

Truculence AM II – OEM
- Total Non-Methane Hydrocarbon module for OEM
- Operation from 105 deg C to 200 deg C
- Dual FID (Fireworks modules) for Real Time TNMHC readings
- Integrated sample filter and all flow control components
- Requires external temp control (2 zones)
- Support gasses required are pressure regulated Air (110 – 220 cc/min), H2 (25 – 50 cc/min) and sample pressure set point (no flow)
- Requires pressurized sample @ ~20 psig standard & approx. 1.5 SCCM (custom sample delivery values available)
